FBE-1100V Epoxy Coated Steel Tanks

FBE-1100V Epoxy Coated Steel Tanks

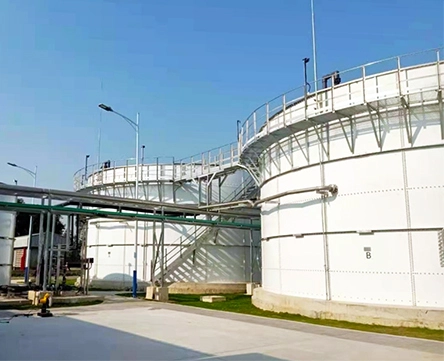

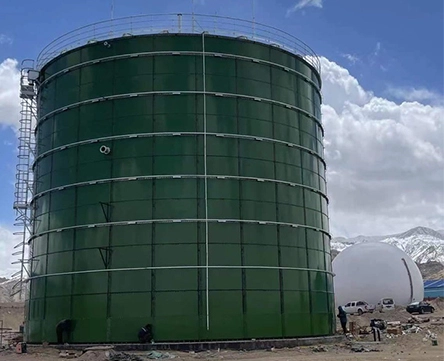

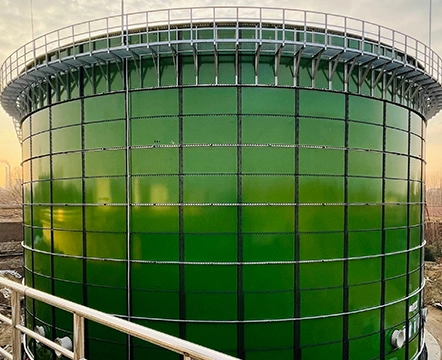

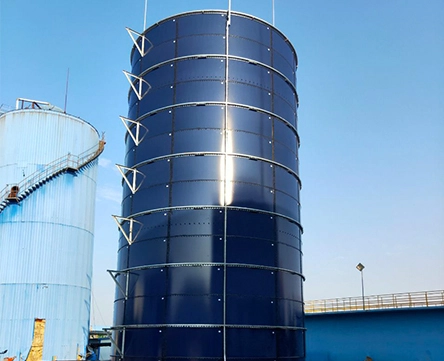

The FBE-1100V epoxy coated steel tank is a higher quality storage solution for storing a variety of light corrosive liquids including products such as drinking water.


Our epoxy lined water tank is constructed from high-grade steel and coated with a specialized epoxy coating that provides superior resistance to corrosion and abrasion.


YHR is a professional manufacturer of epoxy coated tanks. We offer customized solutions for long-term storage. The color, size, shape, and configuration of our epoxy steel tank can be on-demand designed. Contact us if you are interested in our epoxy coated steel tanks.


Advantages
FBE-1100V Epoxy Coated Steel Tanks

FBE-1100V Epoxy Coated Steel Tanks
  • Excellent anti-corrosion performance

  • Fast installation with better quality: design, manufacturing, and quality control in the factory

  • Safe, skill-free: less working aloft, no need for long-time worker training

  • Maintenance-free and easy to repair

  • Less influenced by local weather

  • Possible to relocate, expand and reuse

  • Beautiful appearance

Specifications
FBE-1100V Epoxy Coated Steel Tanks

Dry Film ThicknessMinimum 12 mils / 200 microns interior, Minimum 9 mils/ 80 microns exterior
Hot Water Immersion45 days
Adhesion≥16MPa
Corrosion ResistanceMeets or exceeds industry norms
Impact Resistance>18 Joule
PH Range5-9
Abrasion Resistance: CSCS-17, 1000g, 1000 cycles <40mg
Hardness2H
Chemicallmmersion3 months no change (refer to the Standard of chemical reagents)
Holiday Test1100V


Color Options
FBE-1100V Epoxy Coated Steel Tanks

  • RAL 5013 Cobalt Blue FBE-1100V Epoxy Coated Steel Tanks
    RAL 5013 Cobalt Blue FBE-1100V Epoxy Coated Steel Tanks
  • RAL 6002 Leaf Green FBE-1100V Epoxy Coated Steel Tanks
    RAL 6002 Leaf Green FBE-1100V Epoxy Coated Steel Tanks
  • RAL 9016 Traffic White FBE-1100V Epoxy Coated Steel Tanks
    RAL 9016 Traffic White FBE-1100V Epoxy Coated Steel Tanks

Applications
FBE-1100V Epoxy Coated Steel Tanks

  • Municipal Sludge Cake Storage

  • Farm Digesters

  • Municipal Sludge Storage

  • Municipal Sludge Treatment

  • Municipal Mesophilic Digester

  • Industrial Effluent


YHR Tanks, a seasoned manufacturer of epoxy lined water tanks, specializes in delivering tailored solutions to meet diverse application needs. With extensive experience in the industry, we ensure high-quality, durable, and efficient tanks that are designed to your specifications. Whether you need epoxy coated tanks for industrial, or commercialuse, YHR Tanks is equipped to provide the perfect fit for your requirements. Reach out to us today to discuss your project and receive a customized solution!
